Pure sound quality and outstanding drive power. An integrated amplifier with the advantage of analog and digital inputs.
100 W x 2-ch (20 Hz - 20 kHz)
Digital audio inputs for TV and Blu-ray Disc™ player
CD Direct Amplification and Pure Direct

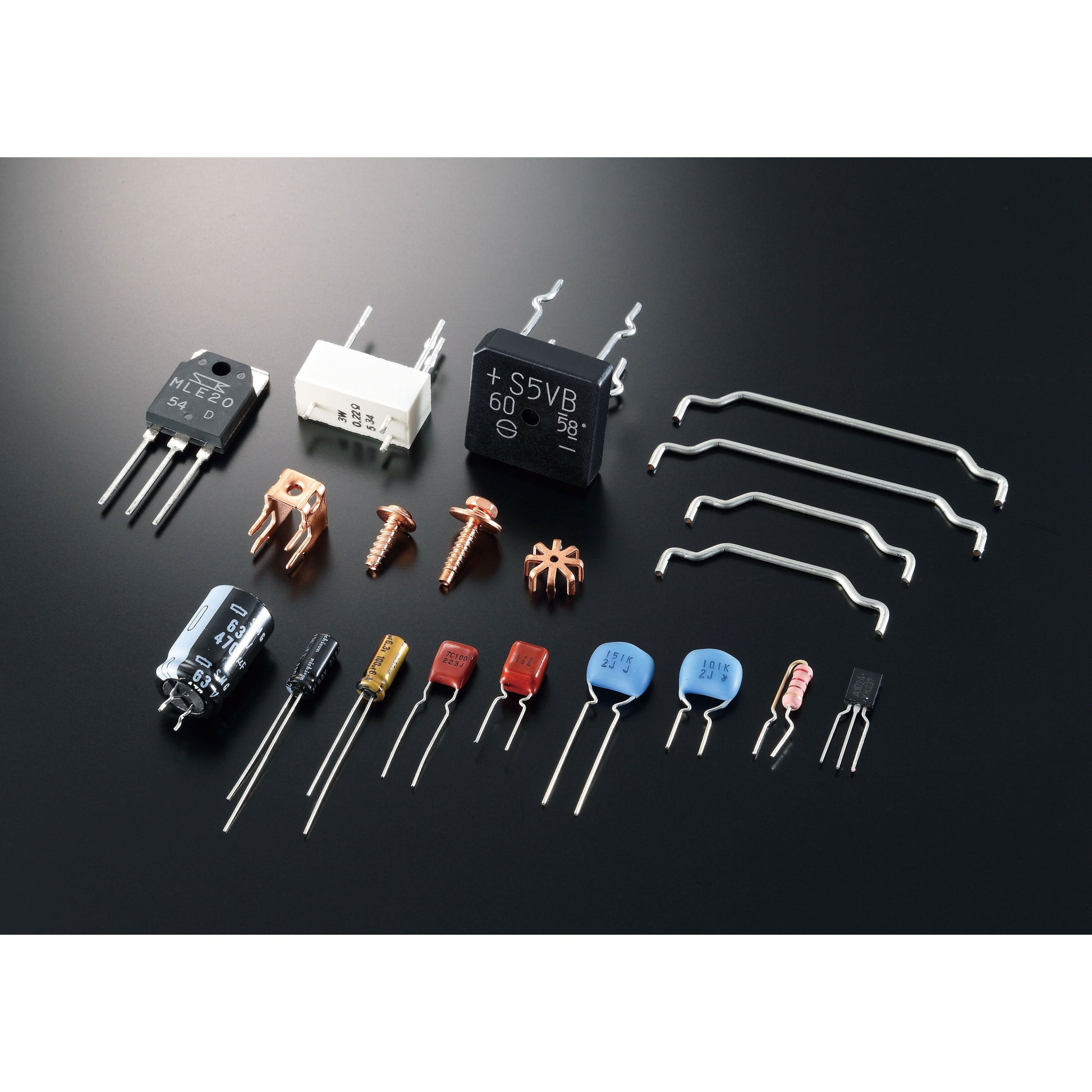

ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts

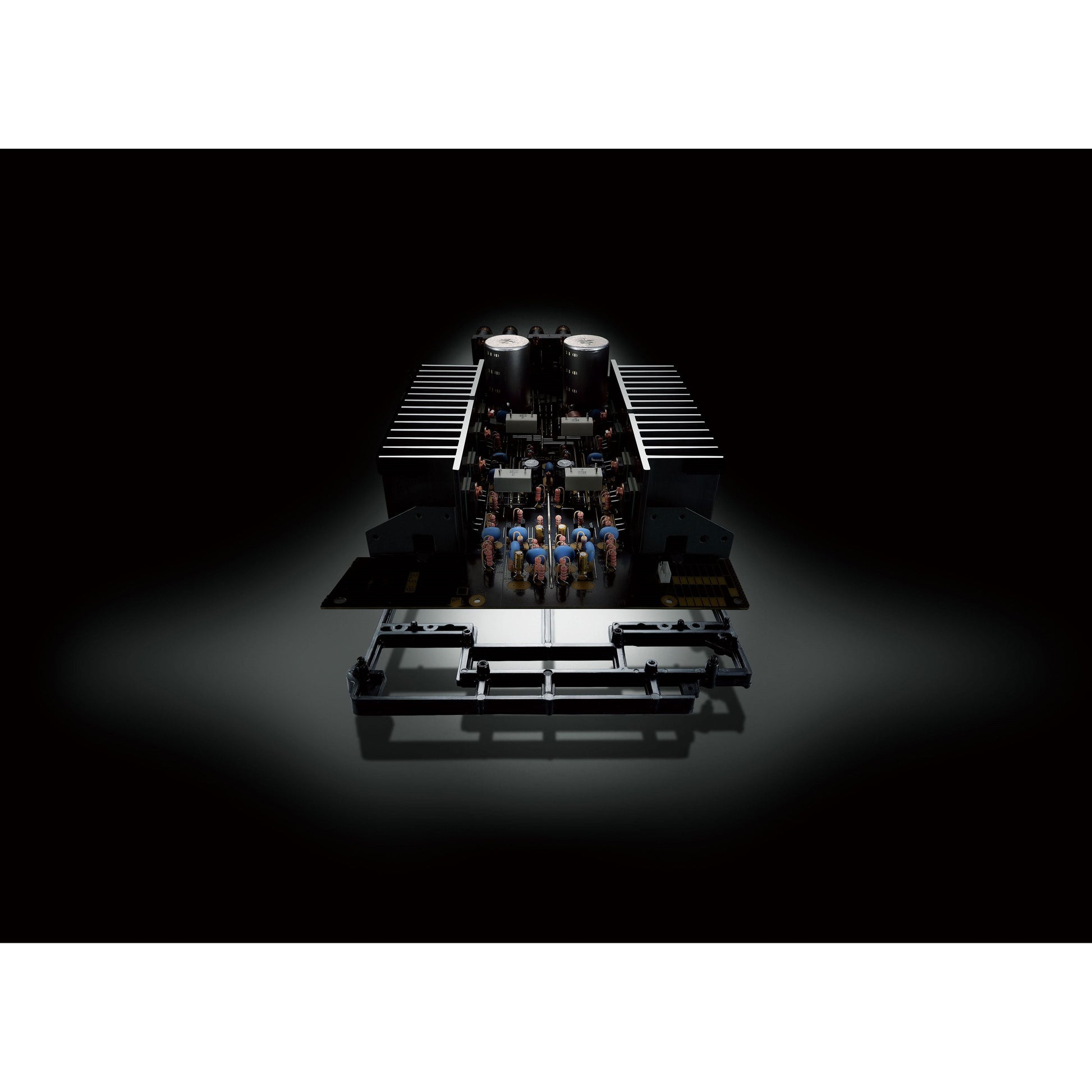

I/O (input to output) direct symmetrical design
ART (Anti-Resonance and Tough) Base
Custom-made power transformer / 12,000uF block capacitors / extruded aluminum heat sinks
Gold-plated speaker terminals and RCA terminals
Simple yet sophisticated design (aluminum front panel)
Continuously variable loudness control
A-S701
Receiver / Integrated Amplifier
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)
100 W + 100 W (0.019% THD)
High Dynamic Power/Channel (8/6/4/2 ohms)
140 / 170 / 220 / 290 W
Frequency Response
10 Hz - 100 kHz +/- 1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)
0.019% (50 W / 8 ohms)
Signal-to-Noise Ratio (CD)
99 dB (input shorted, 200 mV)
Damping Factor
240
Digital Input
Yes (optical / coaxial)
Audio In / Out
8 / 2
Subwoofer Out
Yes
Pure Direct
Yes
ToP-ART
Yes
Switchable CD Direct Amplification
Yes
DC out
Yes
Standby Power Consumption
0.5 W
Power Management (Auto Power Standby)
Yes
Dimensions (W x H x D)
17-1/8" x 6" x 15-1/4"
Weight
24.7 lbs.
