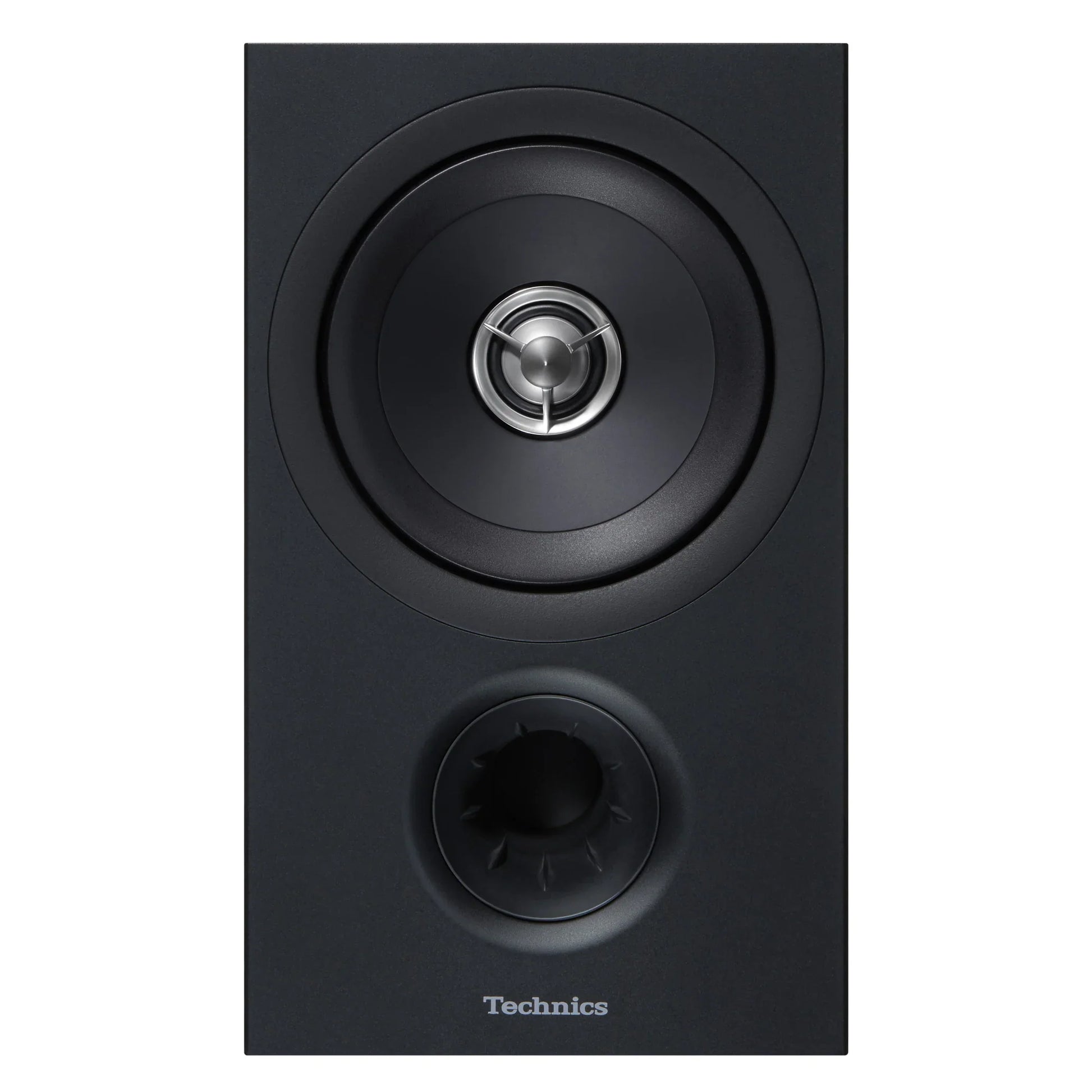

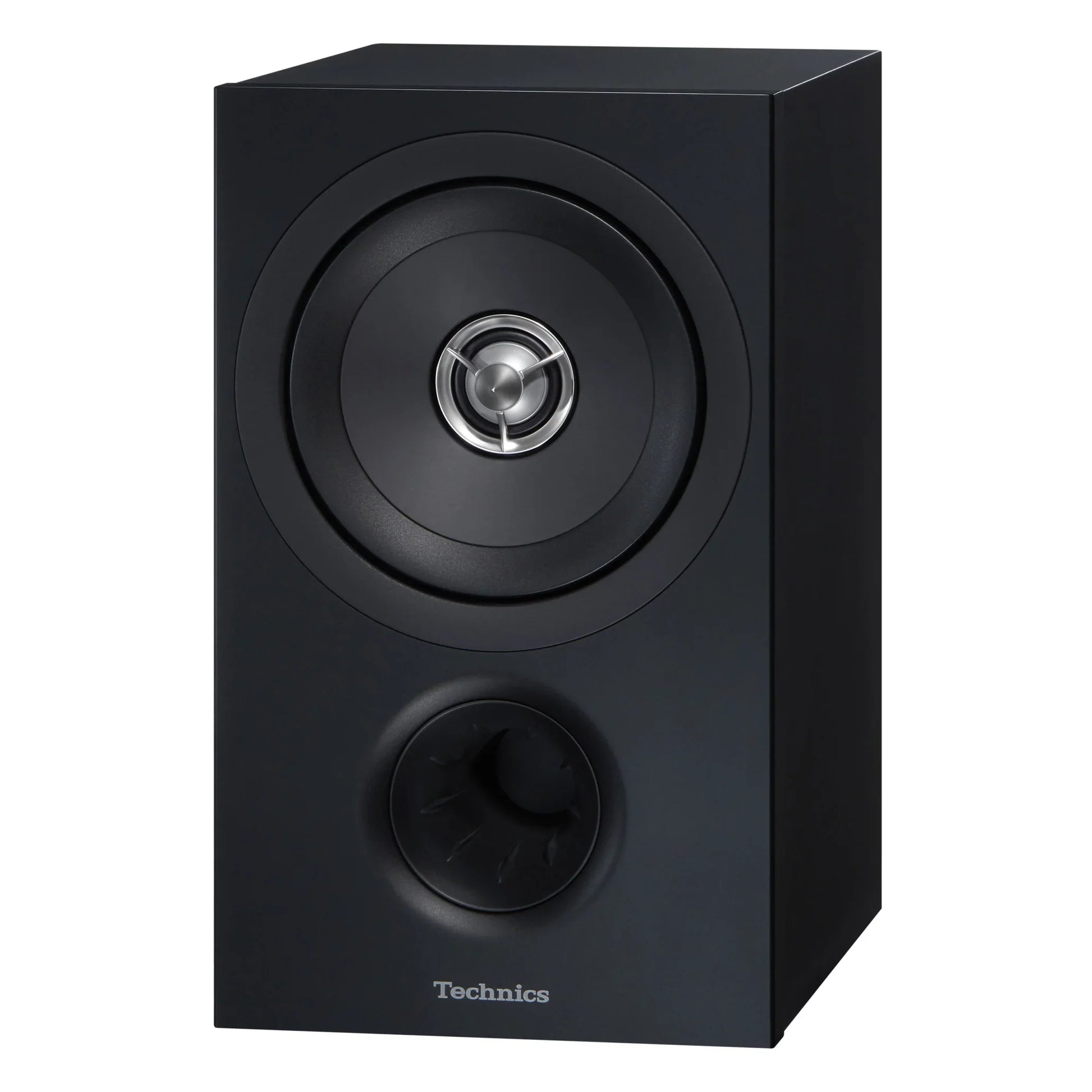

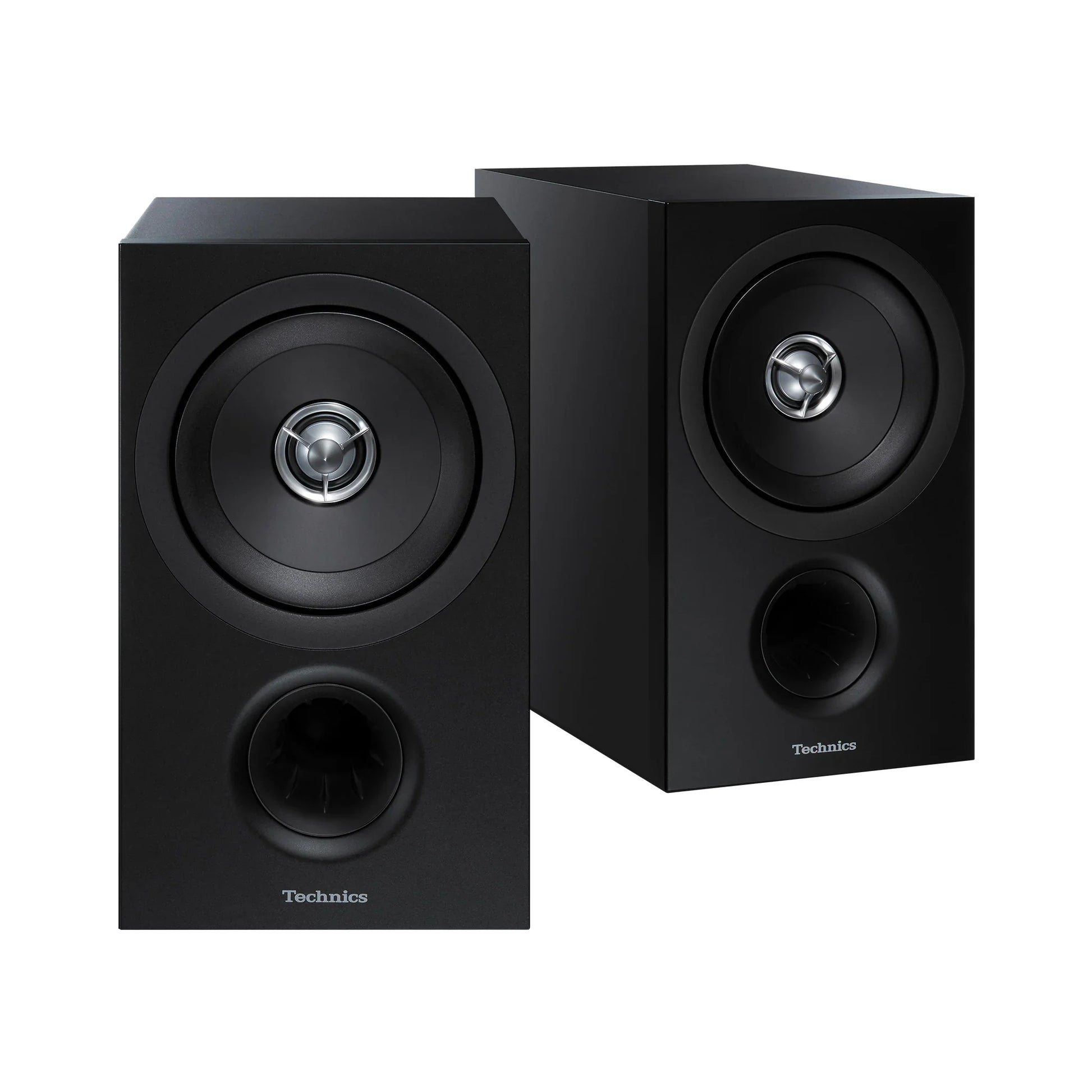

A bookshelf speaker system that provides smooth, emotion-rich, high-quality sound, the SB-C600 uses a 2-way coaxial speaker unit realizes clear sound image localization and full-scale sound stage. The balanced driver mounting architecture thoroughly suppresses unnecessary vibrations for clear audio without distortion.
- Enhanced spatial sound with advanced phase precision driver
- High-resolution sound reproduction and a wide sound stage
- Reproduces sound with a high signal-to-noise ratio, removing undesirable or unnecessary sounds
- Woofer diaphragm has a shallow shape and smooth edge to reduce sound reflection
- Balanced driver mounting architecture holds speaker units in place to eliminate vibration and noise
|
Type
|
2-way 2-speaker Bass Reflex (Coaxial 2-way Woofer/built-in tweeters)
|
|
Speaker Units (Woofer / Tweeter)
|
15 cm (6") Cone type x 1 / 2.5 cm (1") Dome type x 1
|
|
Impedance
|
4Ω
|
|
Input Power (IEC)
|
60W (Rated), 120 W (Max)
|
|
Recommended Amp Power
|
40- 120 W (Speaker tested by IEC60268-5 Short Term Max Test)
|
|
Sound Pressure Level
|
83 dB / 2.83 V (m), 80 dB / W(m)
|
|
Frequency Range
|
40Hz - 100kHz (-10dB)
|
|
Crossover Frequencies
|
2kHz
|
|
Dimensions (W x H x D)
|
7 x 11-1/2 x 10-1/6 inch (Include net and terminal)
|
|
Weight
|
Approx. 14 lbs
|
|
Accessories
|
Speaker Cable x2*¹, Owner's Manual x1 *1 Length of the speaker cable may not be sufficient on your placement. Please prepare suitable cable based on your installation requirements.
|
