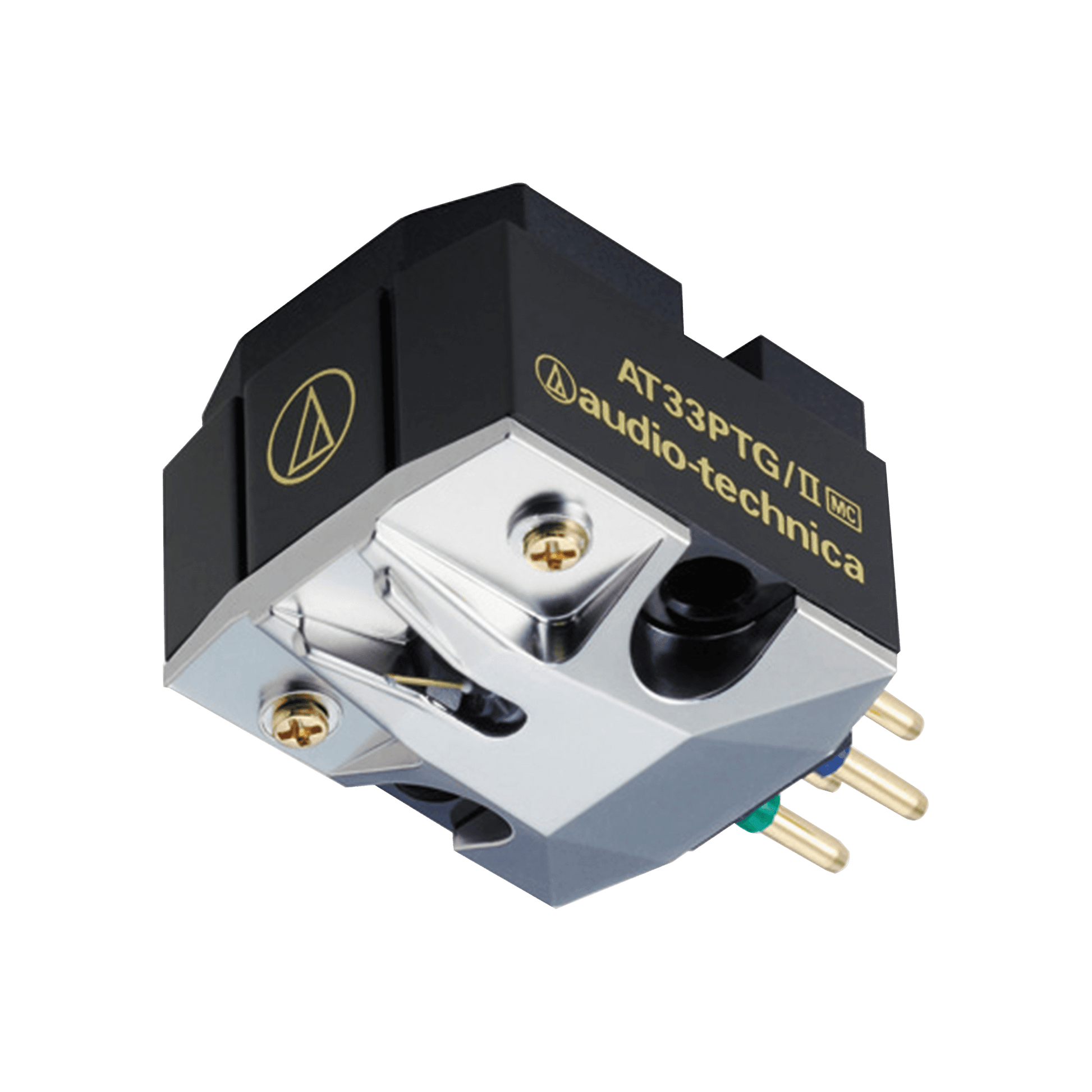

Audio-Technica - AT33PTG/2 MC Phonograph Cartridge

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission. Cartridge & Stylus Frequency Response 15-50,000 Hz Channel Separation 30 dB (1 kHz) Vertical Tracking Angle 23° Recommended Load Impedance More than 100 ohms (when head amplifier is connected) Coil Impedance 10 ohms (1 kHz)
